• Rear axle, 3.42 ratio
• GVWR, 5750 lbs. (2608 kg) (CT15506 models only.)
• Trailering wire harness, connector in bumper
• Transfer case, electronic Autotrac, includes auto 4WD and panel-mounted electronic controls (CT15506 models only.)
• 4-wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Trailering equipment, heavy-duty, includes trailering hitch platform, 7-wire harness, CHMSL wire and heavy-duty flasher (4-wire harness on SS model) ( 7-wire adaptor shipped loose in glove box.)
• Suspension, front independent
• Suspension, rear 5-link coil springs
• Stabilizer bars, front and rear
• Steering, power
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Tools, mechanical jack and wheel wrench
• Key, single, 2-sided

• Wheels, 4 - 18" x 8" (45.7 cm x 20.3 cm) polished aluminum, 5-spoke
• Tires, P245/60R18 all-season, blackwall
• Mirrors, outside heated power-adjustable, manual-folding with integrated turn signal indicators
• Wheel, 17" (43.2 cm) full-size spare
• Tire, spare P245/65R17 blackwall
• Assist steps, Black
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass)
• Luggage rack, roof-mounted, Black, adjustable with center and side rails
• Side rails, roof-mounted, Black
• Moldings, body-color bodyside
• Door handles, body-color
• Bumpers, front and rear body-color, rear step includes pad
• Grille, body-colored
• Headlamps, dual composite halogen with automatic exterior lamp control
• Fog lamps, front, halogen
• Daytime Running Lamps
• Glass, Solar-Ray light-tinted
• Wipers, front intermittent with pulse washers
• Wipers, rear intermittent with washer
• Body, liftgate with liftglass

• Audio system, AM/FM stereo with CD player, seek-and-scan, digital clock, auto-tone control, speed-compensated volume and TheftLock May be substituted with (UC6) AM/FM stereo with 6-disc CD changer or (UM8) AM/FM stereo with CD player and touch-screen navigation.
• Audio system feature, Bose premium speaker system
• Audio system controls, rear with headphone jacks (headphones not included)
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com)

• Seats, front buckets with leather-appointed seating driver and front passenger power lumbar control, adjustable outboard head restraints, 8-way power driver and front passenger seat adjusters with power recliners
• Defogger, rear-window electric
• Remote Keyless Entry, programmable with 2 transmitters and panic button
• Theft-deterrent alarm system, content theft alarm, includes beeping horn and flashing lights
• Floor mats, color-keyed carpeted front and rear, removable
• Seat adjuster, 8-way power front passenger with power lumbar control
• LT Convenience Package, includes (AAB) driver seat memory function, (KA1) heated driver and front passenger seats and (DS3) outside heated power- adjustable mirrors with turn signal indicators
• Seat adjuster, driver 2-position memory seat
• Seats, heated driver and front passenger
• Seats, second row split-folding
• Console, floor with CD storage
• Floor covering, full-floor color-keyed carpeting
• Quiet Package with strategically placed elements of sound insulation
• Steering wheel, leather-wrapped with mounted audio and Driver Information Center controls, includes theft-deterrent locking feature
• Driver Information Center, monitors different systems, includes trip computer, fluid levels and door ajar
• Warning tones, headlamp on, key-in-ignition, driver safety belt unfasten and turn signal on
• Tire pressure monitoring system
• Convenience Package, power windows and door locks, programmable with lighted switches, driver and front passenger Express-Down windows, power rear glass release and rear-window wiper/washer
• Cruise control, electronic with set and resume speed
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Air conditioning, rear with heater
• Heater and defogger with front and side front door window defoggers and rear passenger heating ducts
• Glovebox, passenger-side of instrument panel
• Power outlets, auxiliary
• Mirror, inside rearview auto-dimming with 8-point compass display
• Console, overhead custom
• Universal Home Remote, includes garage door opener, 3-channel programmable
• Armrests, driver and passenger doors, padded
• Door trim, integral padded armrests and driver- and front passenger-side map pockets
• Headliner, Neutral-colored cloth with matching retainer moldings
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, color-keyed
• Assist handles, front passenger and rear outboard
• Lighting, interior with theater dimming, cargo compartment, reading lights for front seats, second row dome light, door- and tailgate-activated switches and illuminated entry and exit feature
• Cup holders, front and rear
• Cargo tie downs, 5 in-floor, located in the rear compartment
• Cargo mat, rear

• StabiliTrak, Stability Control System
• Brakes, 4-wheel antilock, 4-wheel disc
• Theft-deterrent system, vehicle, PASSlock
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, and Remote Horn & Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com for system limitations and details. Not available with certain FDR order types. Not available with a ship-to of Puerto Rico or the Virgin Islands.)
• Air bags, frontal, driver and front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, front and rear outboard seating positions (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Door locks, rear child security
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Horn, dual note high and low

ENGINE, VORTEC 4.2L I6 SFI

• with transmission oil cooler (285 hp [212 kW] @ 6000 rpm
• 276 lb-ft of torque [374 Nm] @ 4600 rpm) (STD)

• 3.42 Rear Axle Ratio
• Reclining Front Bucket Seats
• AM/FM Stereo w/CD Player/XM Satellite
• Bose Premium Audio Speaker System Feature
• AM/FM Stereo w/6-Disc CD Changer
• Power Tilt-Sliding Sunroof w/Express-Open
• Black Assist Steps
• Premium Smooth Ride Suspension Package
• Trailering Wire Harness Connector In Bumper
• Overhead Custom Console
• Electronic AutoTrac Transfer Case
• XM Satellite Radio
• 4-Wheel Disc Brakes
• Emergency communication system: OnStar Safe & Sound
• AM/FM radio: XM
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear reading lights
• Rear anti-roll bar
• Power windows
• Power steering
• Power driver seat
• wer door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front fog lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• CD player
• Bumpers: body-color
• Bodyside moldings
• Alloy wheels
• ABS brakes
• Voltmeter
• Tachometer
• Roof rack
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 13.9
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2950
• Gross Axle Wt Rating - Rear (lbs): 3200
• Curb Weight - Front (lbs): 2435
• Curb Weight - Rear (lbs): 2071
• Gross Vehicle Weight Rating Cap (lbs): 5750
• Gross Combined Wt Rating (lbs): 10000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 780
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Coil
• Spring Capacity - Front (lbs): 3100
• Spring Capacity - Rear (lbs): 3200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2950
• Axle Capacity - Rear (lbs): 3200
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 36
• Stabilizer Bar Diameter - Front (in): 1.33
• Stabilizer Bar Diameter - Rear (in): 0.94
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.14
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 0.78
• Tires
• Front Tire Order Code: QZD
• Rear Tire Order Code: QZD
• Spare Tire Order Code: ZTM
• Front Tire Size: P245/65R17
• Rear Tire Size: P245/65R17
• Spare Tire Size: P245/65R17
• Front Tire Capacity (lbs): 1793
• Rear Tire Capacity (lbs): 1793
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8
• Rear Wheel Size (in): 18 x 8
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: 20.4
• Turning Diameter - Curb to Curb (ft): 36.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.0
• Fuel Tank Location: - TBD -
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 113.00
• Length, Overall w/rear bumper (in): 191.80
• Width, Max w/o mirrors (in): 74.70
• Height, Overall (in): 72.50
• Overhang, Front (in): 34.96
• Overhang, Rear w/bumper (in): 43.8
• Ground to Top of Load Floor (in): 32.1
• Ground Clearance, Front (in): 7.80
• Ground Clearance, Rear (in): 7.80
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 80.1
• Cargo Area Length @ Floor to Seat 2 (in): 43.7
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 39.6
• Cargo Volume to Seat 1 (ft³): 80.1
• Cargo Volume to Seat 2 (ft³): 41.0
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.20
• Front Leg Room (in): 46.90
• Front Shoulder Room (in): 58.50
• Front Hip Room (in): 56.00
• Second Head Room (in): 39.60
• Second Leg Room (in): 37.00
• Second Shoulder Room (in): 58.50
• Second Hip Room (in): 58.20
• Summary

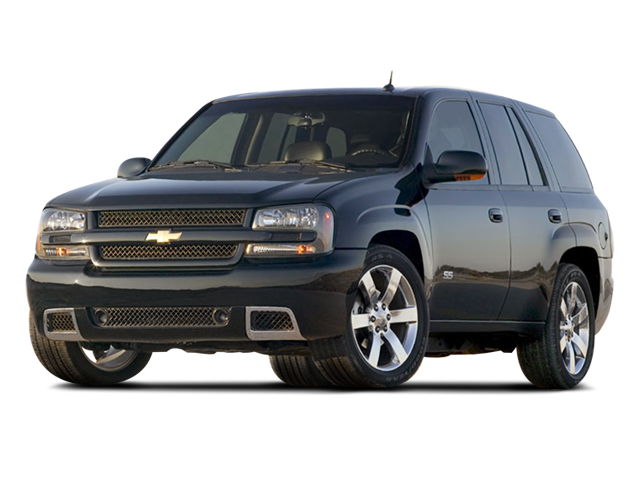

• Vehicle Name: Chevrolet TrailBlazer
• Body Style: 4 Door
• Body Code: TB4
